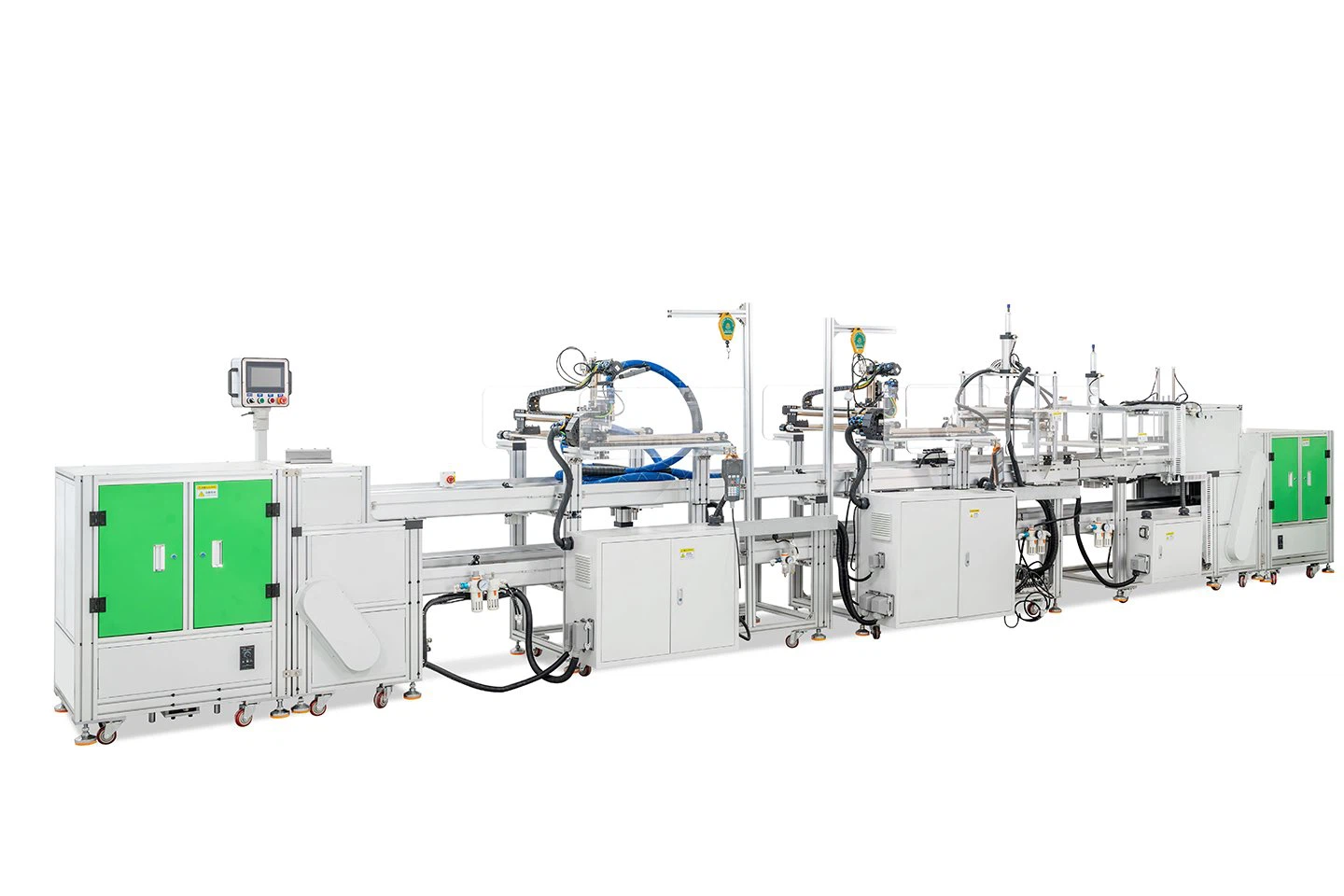

HEPA Automatic Assembling Line

HEPA Automatic Assembling Line
Details:
1. Equipment adaptation product range: length: 100-500mm; Width: 150-450mm;
2. Scratching height: 10-80mm (the glue nozzle can be moved up and down by about 0-20mm);
3. Voltage: 220V; Air pressure: 0.6Mpa; Power: 10KW; Weight: 300KG;
4. Efficiency: 60-100mm/S;
5. Equipment dimensions: length x width x height: 5800x2300x1700mm.
Send Inquiry
Download
Description
Technical Parameters
HEPA Continuous Edging Machine Solution



1



Equipment Parameter Introduction



  • 1. Equipment adaptation product range: length: 100-500mm; Width: 150-450mm;
  • 2. Scratching height: 10-80mm (the glue nozzle can be moved up and down by about 0-20mm);
  • 3. Voltage: 220V; Air pressure: 0.6Mpa; Power: 10KW; Weight: 300KG;
  • 4. Efficiency: 60-100mm/S;
  • 5. Equipment dimensions: length x width x height: 5800x2300x1700mm.



Introduction to Equipment Reference Views

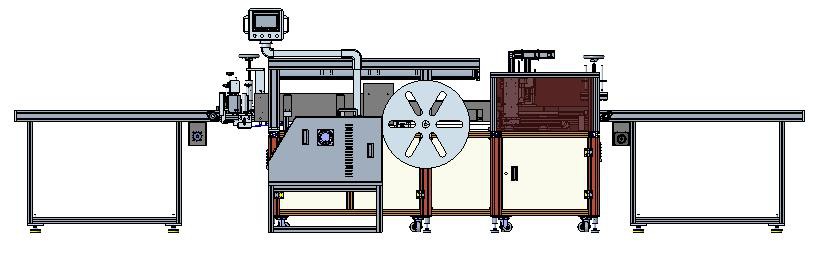

Equipment Main View

2



Top View of Equipment

3



Introduction to Equipment Structure



Introduction to Each Institution

4

 Introduction to Action Process:

1. The product is placed on the feeding conveyor belt;

2. Sensing the product - edge scraping - edge bonding;

3. The rough cutting and separation mechanism will cut and separate the products one by one after edge bonding;

4. The separated product flows onto the discharge conveyor belt.



Equipment Workstation Introduction



Workstation 1: Scratching and Edging Mechanism

5

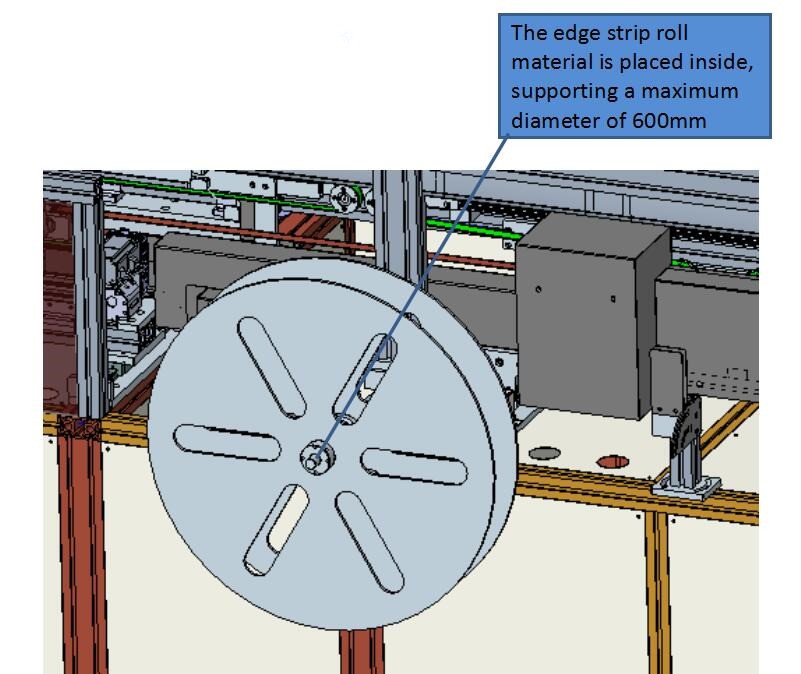

Workstation 2: Roll Material Placement Mechanism

6



Workstation 3: Coarse Cutting Mechanism and Separation Mechanism

7



Dimensional Reference Diagram

8



Introduction to the Main Hardware Brands of the Equipment



1. Servo motor: Hechuan

2. PLC: Delta/Xinjie/Hechuan

3. Electrical accessories: buttons/Yijia; Relay/Omron; Contactor/Chint Schneider; Switching power supply/Mingwei

4. Touch screen: Weilun Tong

5. Sensor: Lugong/Luoshida

6. Synchronous belt module: Dongguan Baishan
